Precision Bending Without Hydraulics

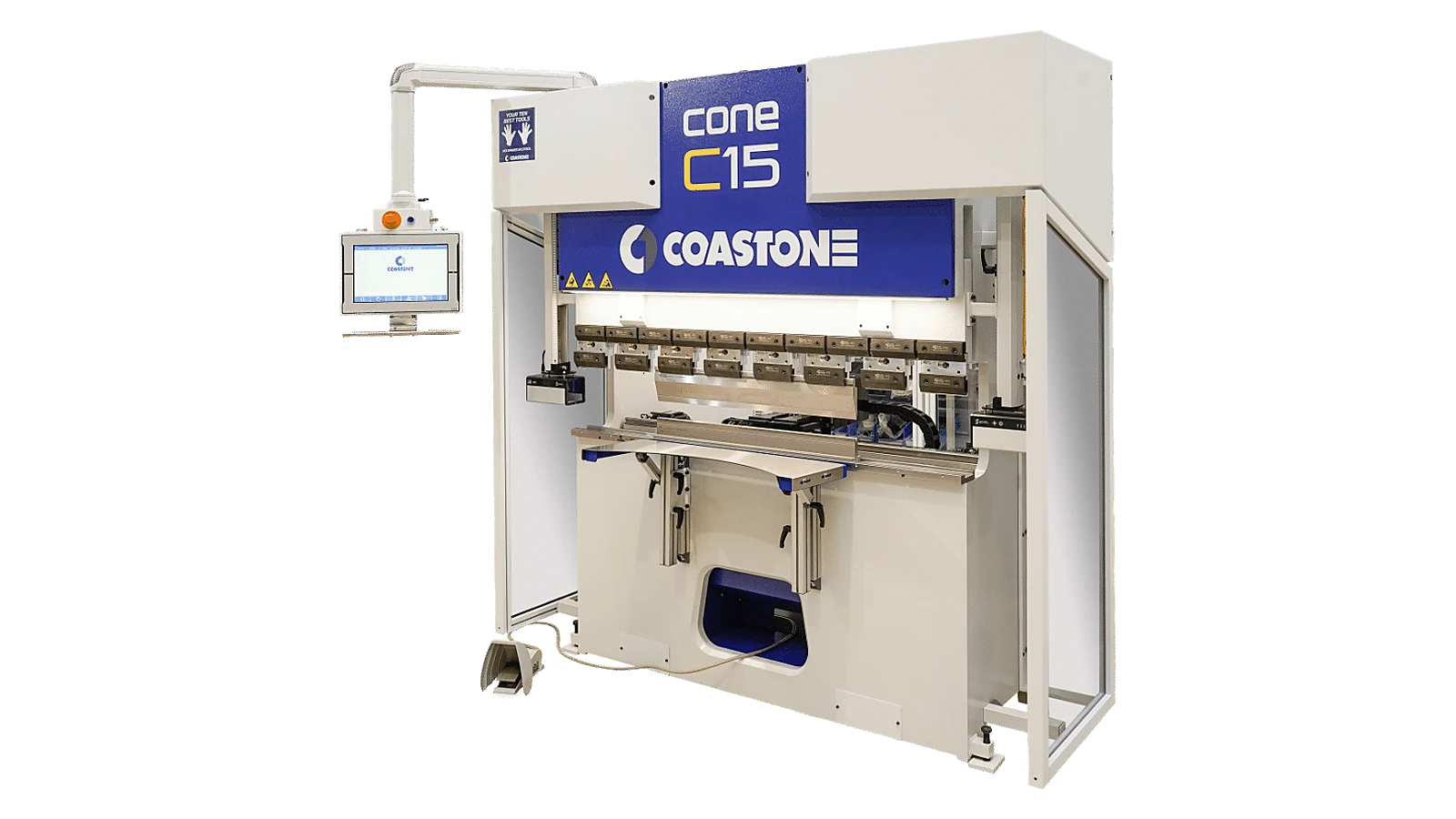

The CoastOne Cone C15 is a fully electric servo press brake, built in 2026 by CoastOne Oy in Seinäjoki, Finland. Its working bending length is 1500 mm with a maximum of 1600 mm, its force is 440 kN (44 t), and it handles material up to 6 mm thick.
The machine has no hydraulics at all. That means lower consumption, more precise positioning and no hydraulic oil — a hydraulic press brake in this class draws several times the total power.
Control is Cone TC15 2D and there are four axes — Y, X, R and Z, without Delta X. Power is 2 × 5 kW, weight is 3000 kg, and the stopping time is under 200 ms.
Key capabilities
- Type: fully electric servo press brake
- Bending length: 1500 mm standard, 1600 mm maximum
- Force: 440 kN / 44 t
- Maximum material thickness: up to 6 mm
- Axes: 4 — Y, X, R, Z (no Delta X)
- Control: Cone TC15 2D
- Power: 2 × 5 kW
- Weight: 3000 kg
- Stopping time: under 200 ms
Accuracy and travels, per the manufacturer's documentation
Y axis repeatability: ±0.002 mm. X axis accuracy: ±0.025 mm. R axis accuracy: ±0.05 mm. Z axis accuracy: ±0.5 mm.
Travels: Y 250 mm, X 600 mm, R 200 mm, Z from 120 to 1480 mm.
Intended use
Smaller parts, precise bends and serial work. A robot cell is planned from 8 December 2026 for runs of identical parts.
